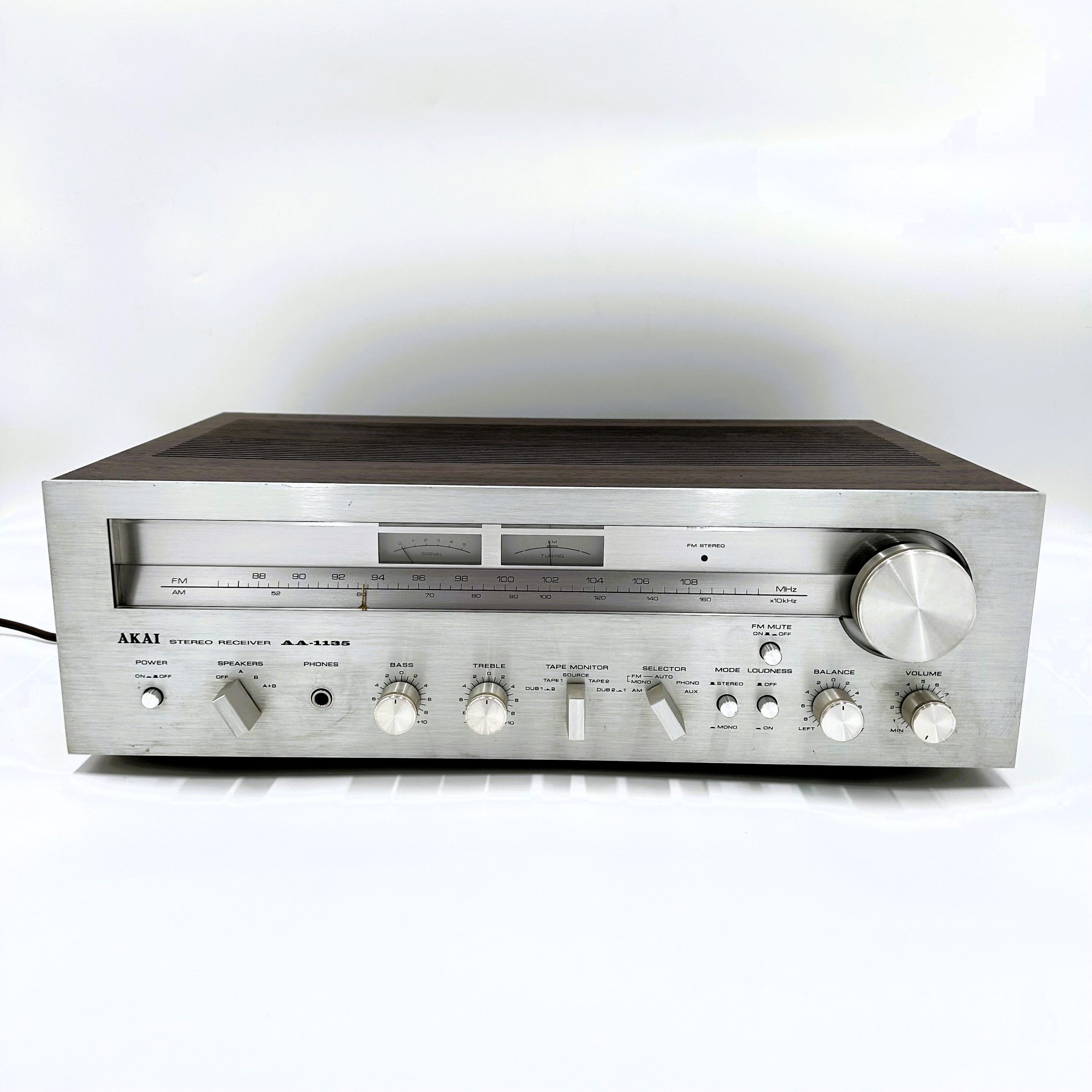

AKAI AA1135

UNIT HAS BEEN TESTED AND POTENTIAMETERS HAVE BEEN CLEANED.
*TO SEE A REAR VIEW, PLEASE TYPE THE MAKE AND MODEL NUMBER INTO GOOGLE AND USE THE WORD “REAR” TO VIEW THE ENTIRE UNIT.

SPECIFICATIONS:

Tuning range: FM, MW

Power output: 35 watts per channel into 8Ω (stereo)

Frequency response: 6Hz to 70kHz

Total harmonic distortion: 0.2%

Damping factor: 30

Input sensitivity: 3mV (MM), 150mV (DIN), 150mV (line)

Signal to noise ratio: 80dB (MM), 90dB (line)

Channel separation: 55dB (MM)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 4 x IC, 1 x FET, 37 x transistors, 20 x diodes

Dimensions: 480 x 155 x 345mm

Weight: 10.8kg
