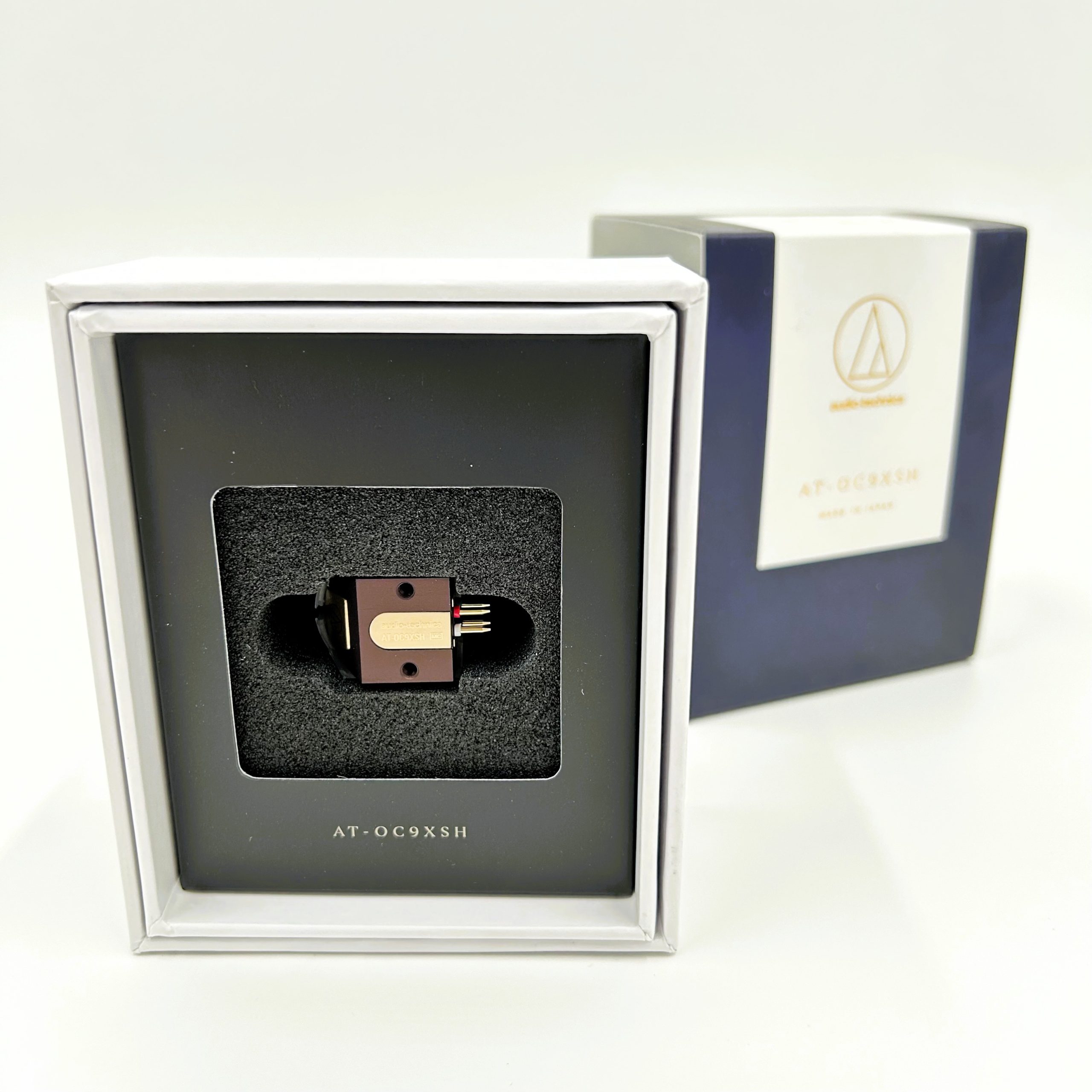

AUDIO TECHNICA AT-OC9XSH
$949.95
BEAUTIFUL BRONZE AND GOLD
MOVING COIL
SHIBATA STYLUS
https://www.audio-technica.com/en-ca/at-oc9xsh
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-47,000 Hz |
| Channel Separation | 27 dB (1 kHz) |
| Vertical Tracking Angle | 20° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | Min. 100 ohms (when head amplifier is connected) |
| Coil Impedance | 12 ohms (1 kHz) |
| DC Resistance | 12 ohms |
| Coil Inductance | 25 mH (1 kHz) |
| Output Voltage | 0.4 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Stylus Shape | Shibata |
| Cantilever | 0.28 mm diameter nude boron |
| Static Compliance | 20 x 10-6 cm/dyne |
| Dynamic Compliance | 16 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Cartridge Weight | 7.6 g |
| Dimensions | 17.3 mm (0.68″) H × 16.8 mm (0.66″) W × 25.7 mm (1.01″) D |
| Accessories Included | Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush |
| Body Material | Aluminum |
| Model | AT-OC9XSH |
| Mounting Feature | Half-inch mount |
| Stylus Curvature Radius | 2.7 x 0.26 mil |
| Stylus Size | Nude square shank |
| Terminal Pins | Brass |
| Type | Dual Moving Coil |
| Weight | 7.6 g (0.3 oz) |
| Wire Used for Coil | PCOCC |
| Notes | Mounting Feature: Threaded body Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
