EXCELLENT VINTAGE BRITISH SPEAKERS IN THE FAMOUS “DITTON” LINE!

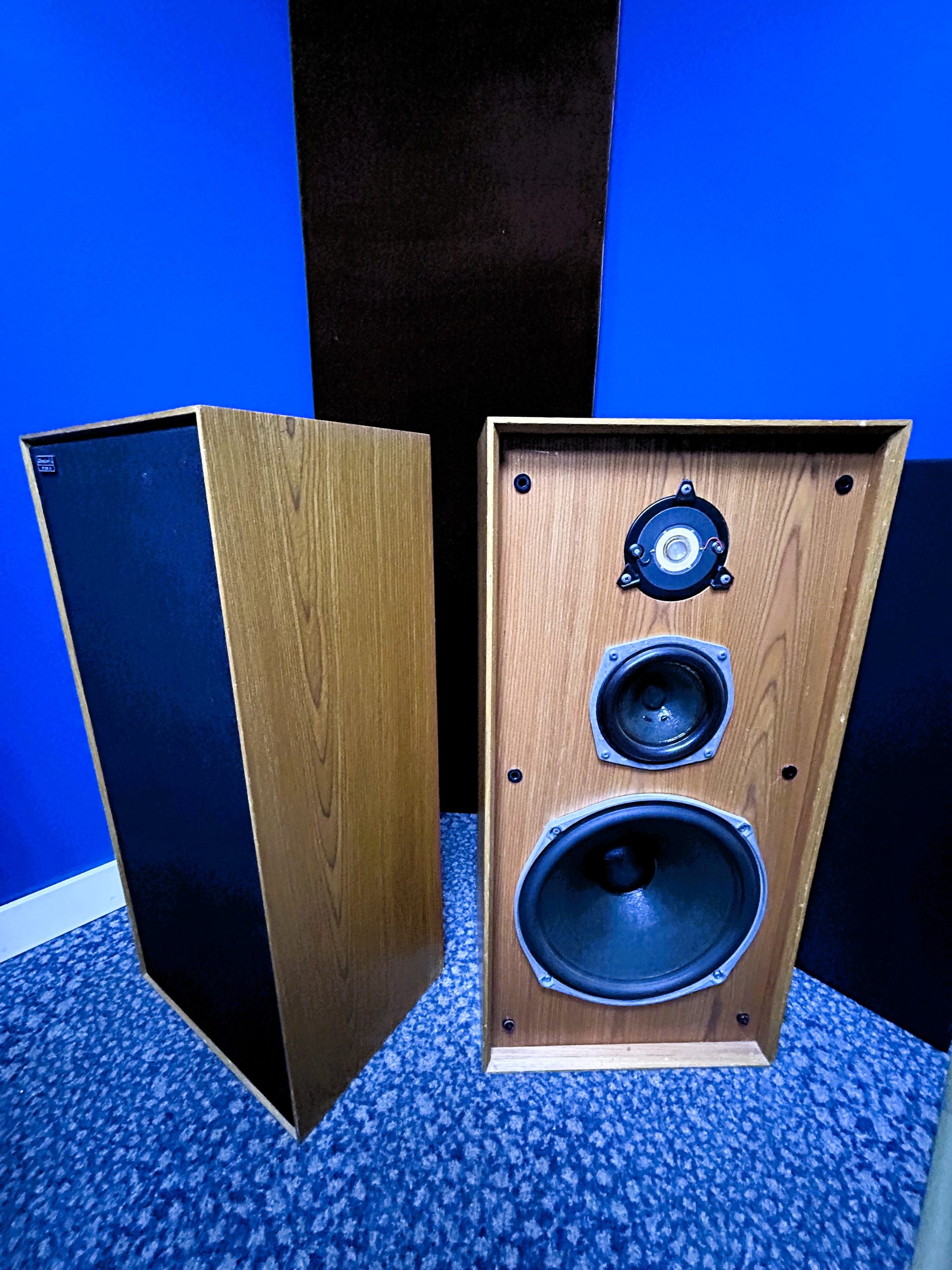

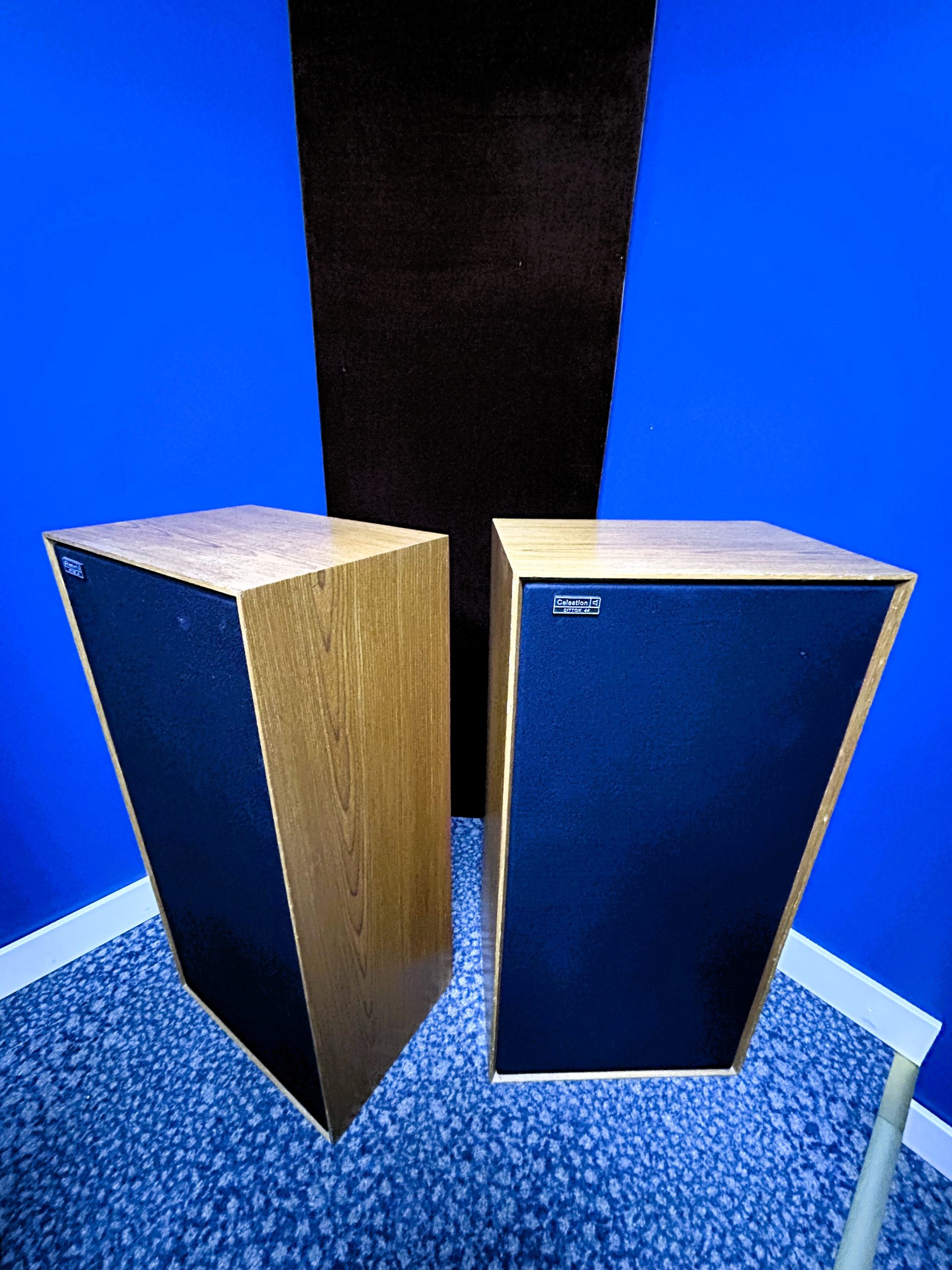

The Ditton 44 is a 3 way system designed to give competent power handling capability with today’s wide range program sources.
The transducer system incorporates many of the features of the Ditton 66 Series including the reliable HF 2001 mylar dome tweeter with a 3/4 inch inch voice coil.
However, the mid range is handled by a 5 inch doped fibre cone and the bass range by a laser developed 8 inch bass unit, a product of Celestion’s unique laser interferometry programme.
The bass unit consists of a specially profiled cone, formed from vinyl homopolymer (VHP) with a 2 inch high temperature voice coil and a molecularly bonded roll surround.
The 3 way system coupled with the rearward facing ABR (44 series 2) enables high levels of bass power handling, within the confines of a highly compact cabinet that fits comfortably into any home or studio.
Specifications
Type: 3 way, 4 driver loudspeaker system
Frequency Response: 42Hz to 20kHz
Power Handling: 120W
Recommended Amplifier: 20 to 120W
Crossover Frequency: 700, 4000Hz
Impedance: 8Ω
Sensitivity: 87dB
Bass Radiator: 1 x 250mm ABR
Bass: 1 x 200mm
Midrange: 1 x 125mm
Tweeter: 1 x 19mm mylar dome
Finish: selected walnut real wood veneer
Dimensions: 660 x 308 x 330mm
Weight: 34kg
