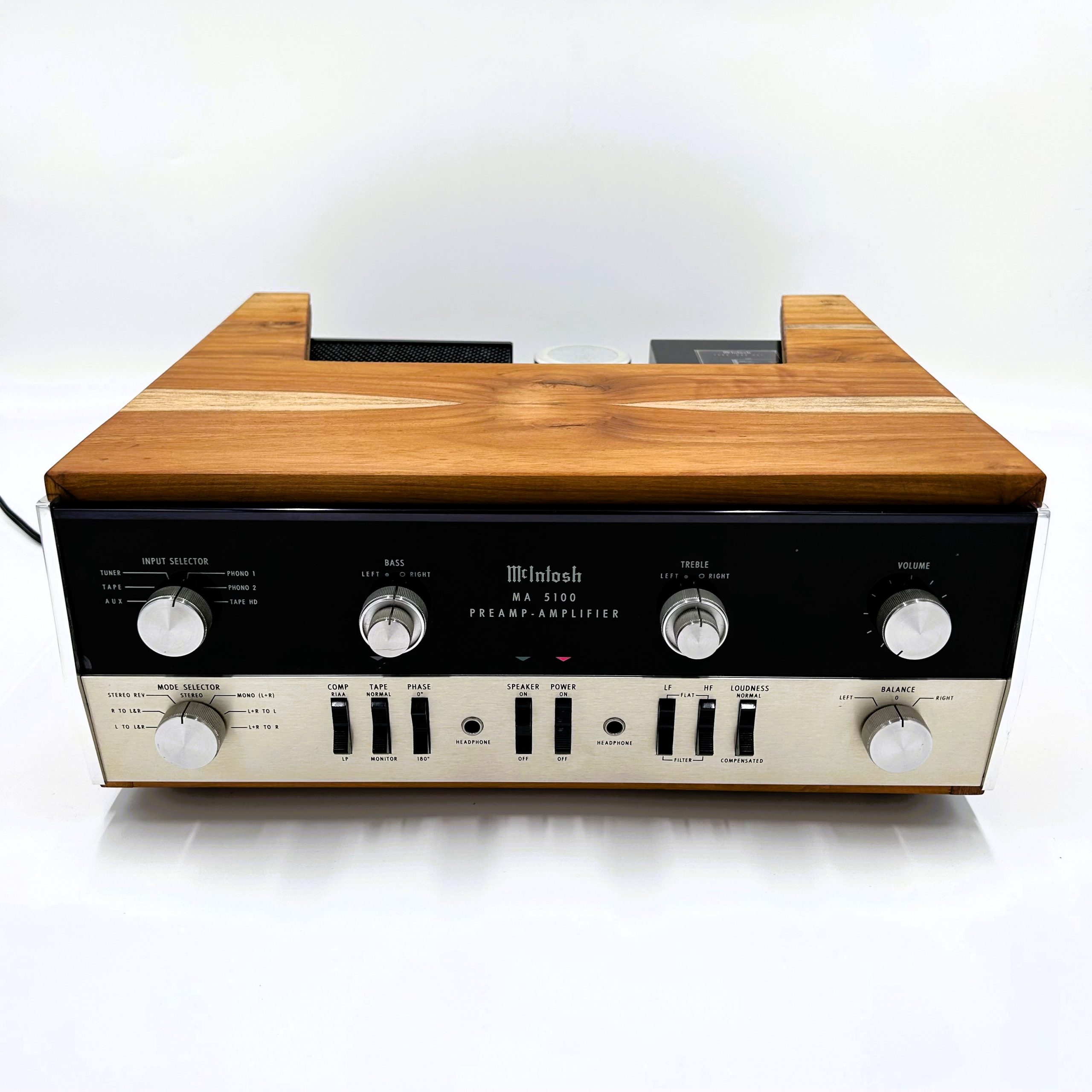

MCINTOSH MA5100

HIGHLY SOUGHT AFTER VINTAGE MCINTOSH INTEGRATED AMPLIFIER
*THE UNIT SAYS PRE AMPLIFIER, BUT IT MEANS INTEGRATED AMPLIFIER, WITH PHONO INPUT AND SPEAKER OUTPUT
CUSTOM SOLID TEAK WOOD CABINET
*CUSTOM MADE METAL GRILL FOR TOP REAR OF WOOD CASE IS INCLUDED BUT WAS FORGOTTEN DURING PICTURE TAKING*

*TO SEE A REAR VIEW, PLEASE TYPE THE MAKE AND MODEL NUMBER INTO GOOGLE AND USE THE WORD “REAR” TO VIEW THE ENTIRE UNIT.

SPECIFICATIONS:

Power output: 45 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 20kHz

Total harmonic distortion: 0.25%

Damping factor: 80

Input sensitivity: 2mV (MM), 300mV (line)

Signal to noise ratio: 70dB (MM), 75dB (line)

Output: 300mV (line)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 23 x diodes, 34 x transistors, 2 x TRIAC

Dimensions: 403 x 138 x 368mm

Weight: 11.3kg

Finish: anodized gold and black front panel

Year: 1966
