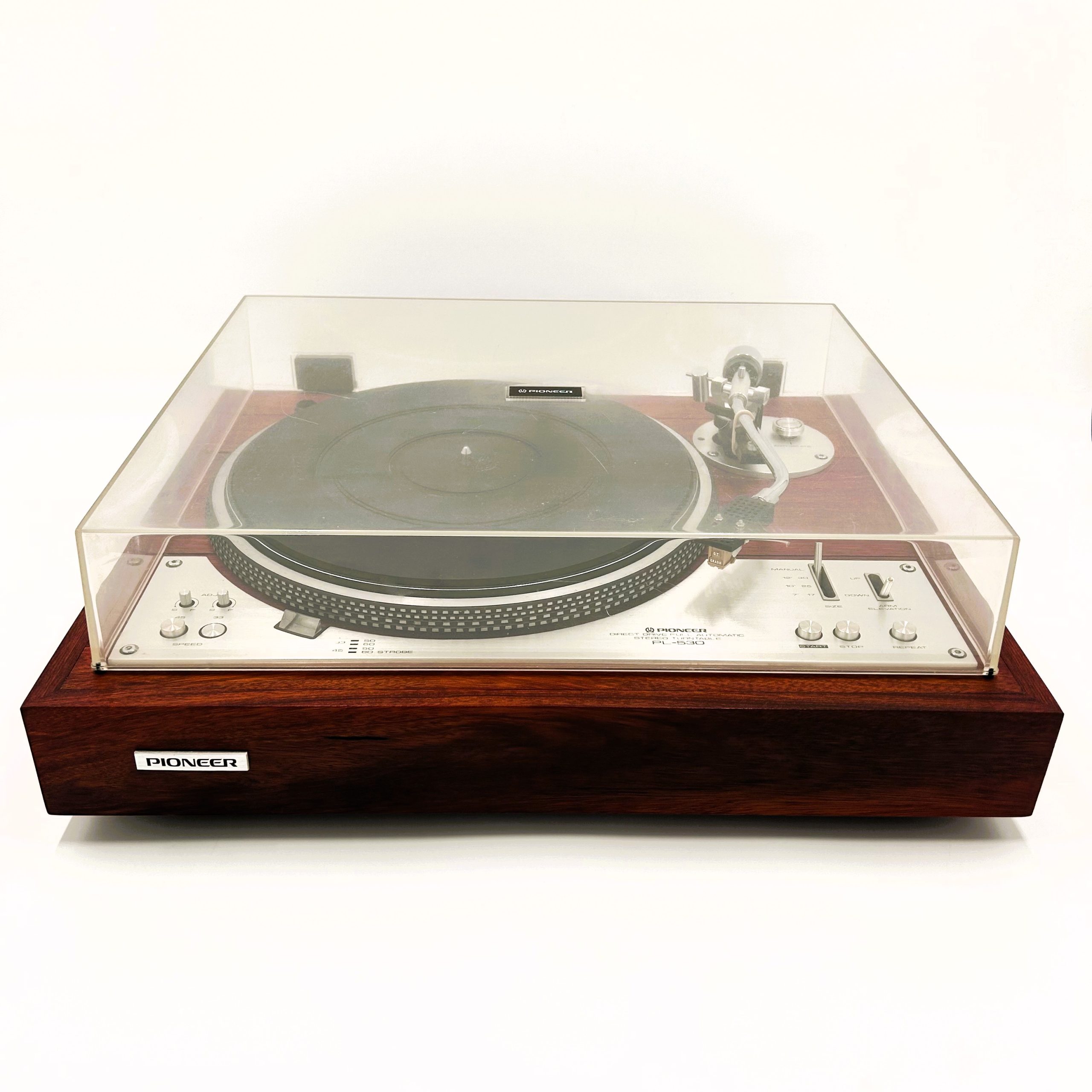

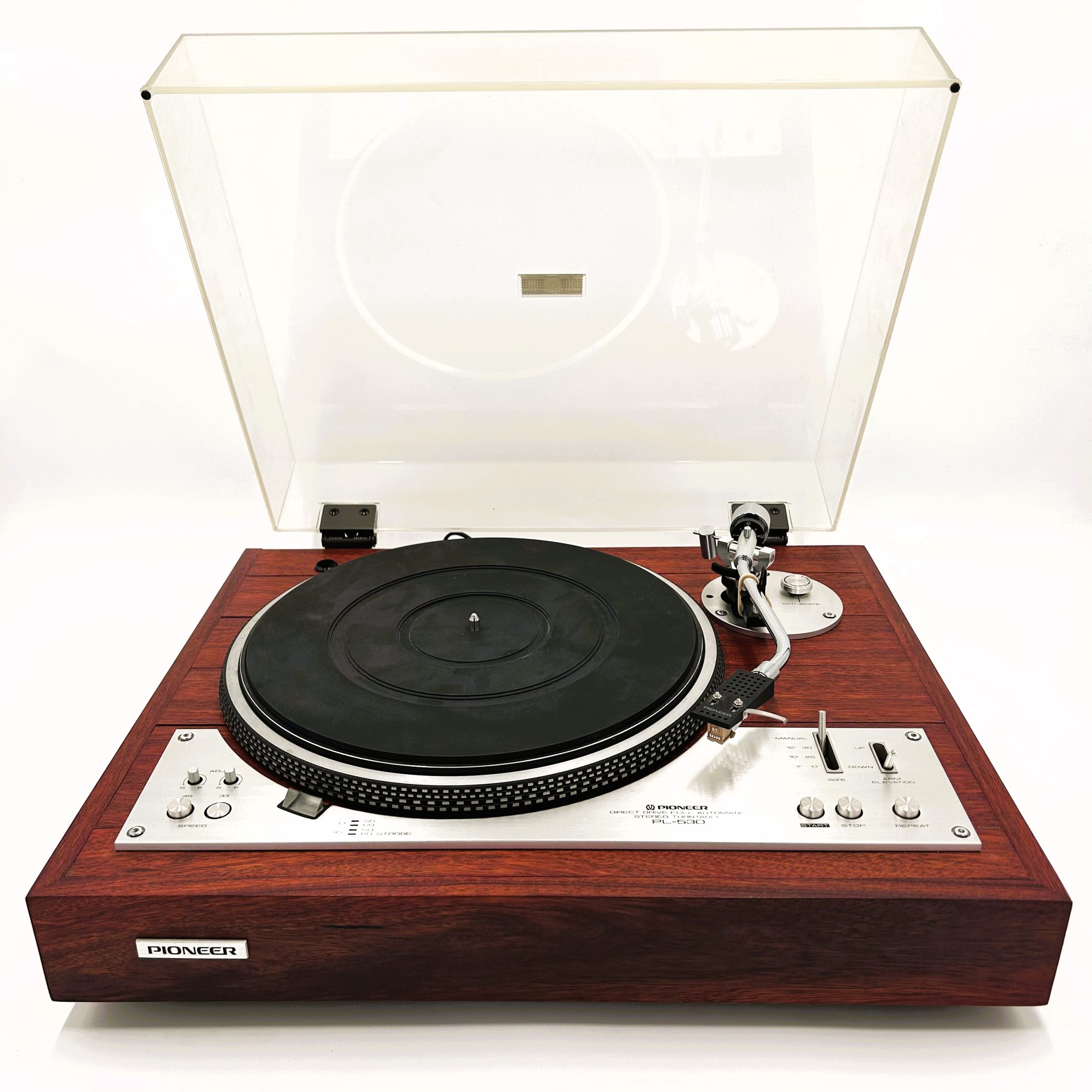

PIONEER PL530

CUSTOM MADE SOLID BLOOD WOOD PLINTH
*REPLACED THE ORIGINAL PARTICLE BOARD AND VENEER PLINTH FOR MORE DENSITY AND HEAVIER BUILD QUALITY
*REPLACED ORIGINAL HARD WIRED RCA CABLES WITH DETACHABLE RCA PORTS FOR USE WITH UPGRADED RCA CABLES

SPECIFICATIONS:

The DC brushless Hall motor in the PL-530 turntable combines Hall elements with a high torque motor and a semi-conductor circuit.

Hall elements, production engineered by Pioneer, are used to switch the polarity in the motor.

Since purely electronic communication is used for switching the motor drive circuit, harmful noise is not generated, and smooth, even rotation can be obtained with high durability.

Specifications

Type: direct drive

Motor: brushless DC servo Hall motor

Platter: 330mm aluminium alloy diecast

Speeds: 33 and 45rpm

Speed control range: +-2%

Wow and flutter: 0.03%

Rumble: 70dB

Tonearm: static-balanced type, s-shaped pipe arm

Effective length: 221mm

Overhang: 15.5mm

Cartridge weight range: 4 to 14.5g

Dimensions: 480 x 390 x 170mm

Weight: 10kg
