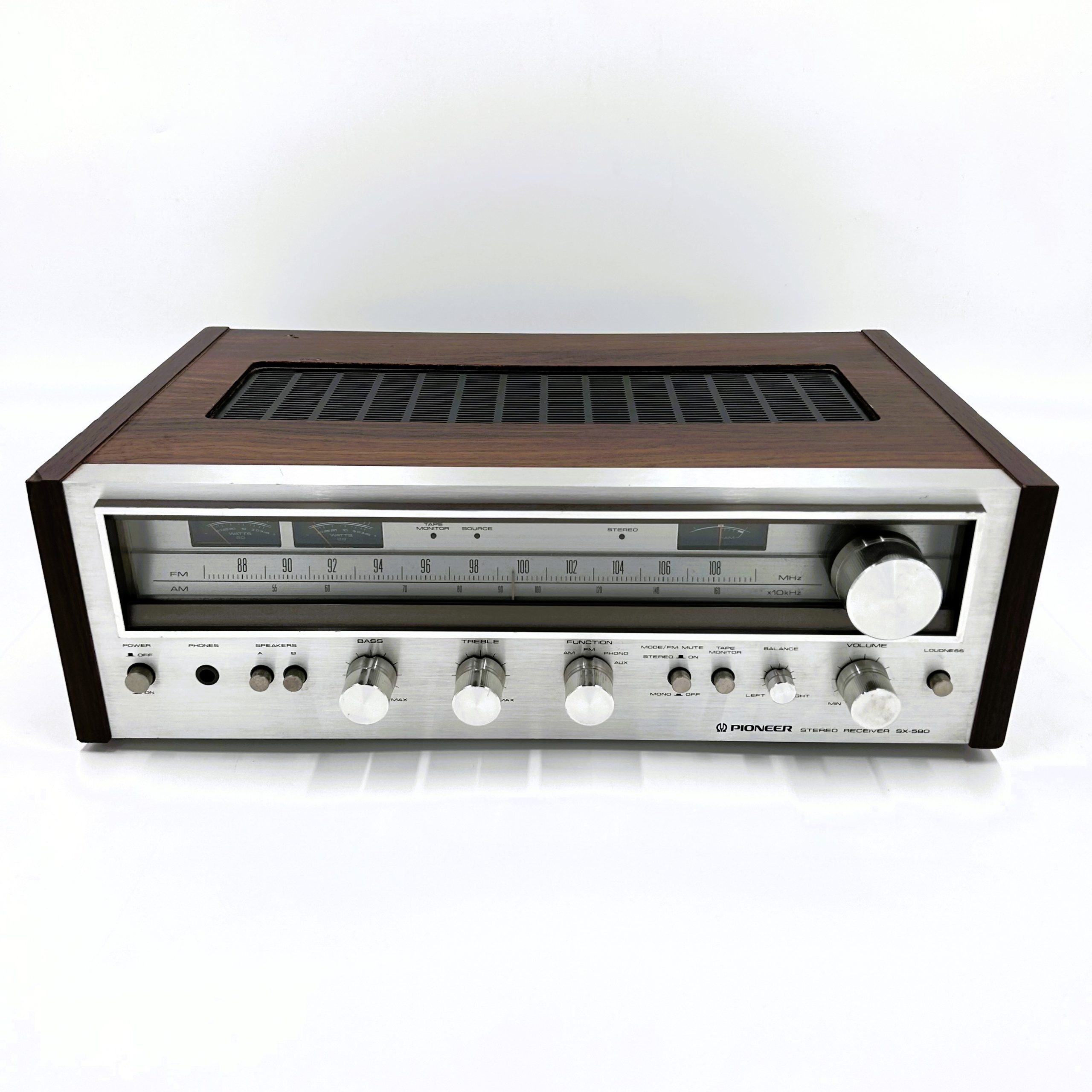

PIONEER SX 580

*TO SEE A REAR VIEW, PLEASE TYPE THE MAKE AND MODEL NUMBER INTO GOOGLE AND USE THE WORD “REAR” TO VIEW THE ENTIRE UNIT.

SPECIFICATIONS:

Tuning range: FM, MW

Power output: 20 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 100kHz

Total harmonic distortion: 0.3%

Damping factor: 25

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 73dB (MM), 90dB (line)

Output: 150mV (line)

Speaker load impedance: 4Ω (minimum)

Semiconductors: 3 x FET, 5 x IC, 17 x transistors, 29 x diodes

Dimensions: 435 x 144.5 x 314mm

Weight: 8.3kg
