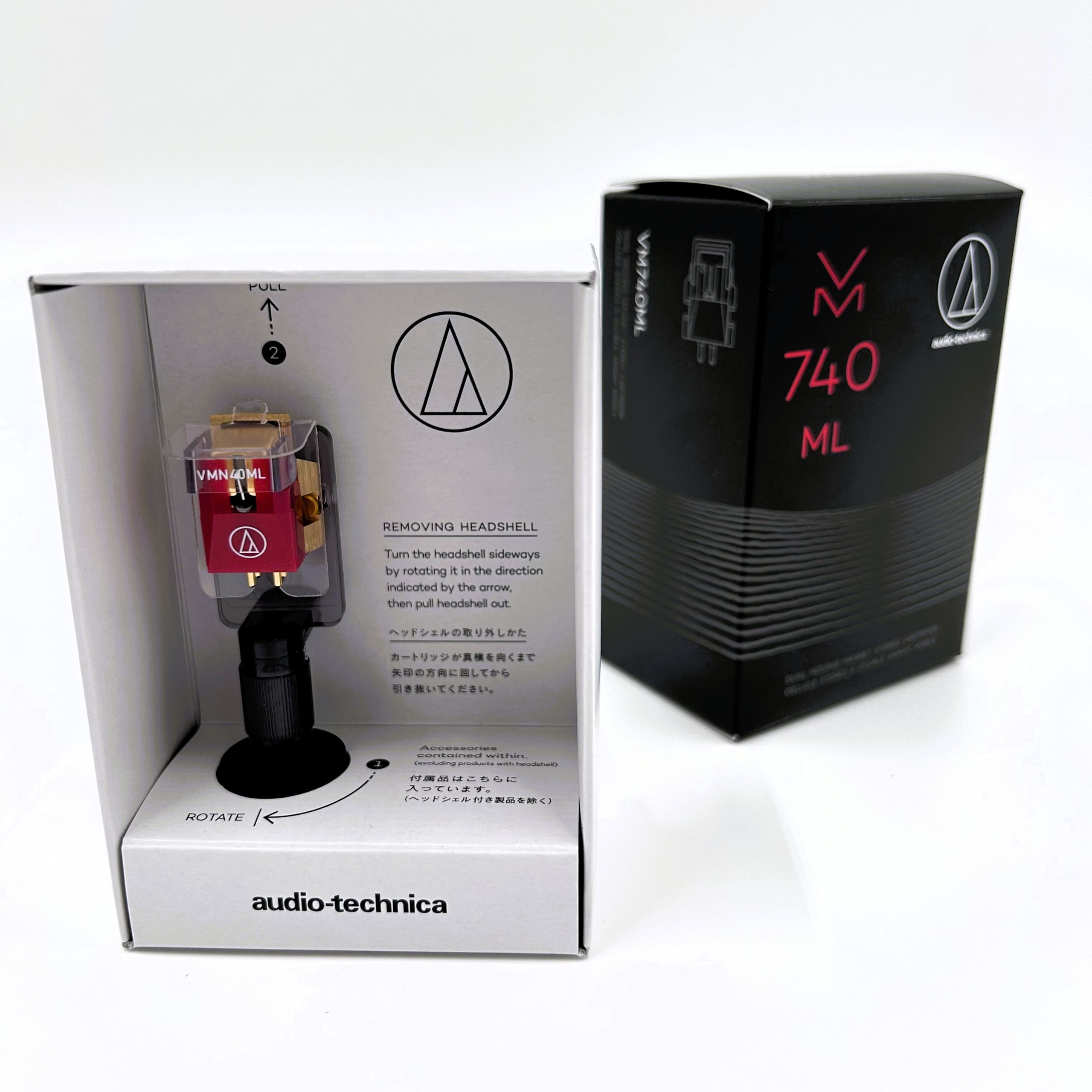

AUDIO TECHNICA AT-VM740ML
$499.95
MICRO LINEAR STYLUS
GORGEOUS MAROON AND GOLD
MOVING MAGNET
NO THREADED BODY (NUTS AND BOLTS REQUIRED)
https://www.audio-technica.com/en-us/vm740ml
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 20-27,000 Hz |
| Channel Separation | 28 dB (1 kHz) |
| Vertical Tracking Angle | 23° |
| Vertical Tracking Force | 1.8-2.2 g (2.0 g standard) |
| Stylus Construction | Nude square shank |
| Recommended Load Impedance | 47,000 ohms |
| Coil Impedance | 2,700 ohms (1 kHz) |
| DC Resistance | 800 ohms |
| Coil Inductance | 460 mH (1 kHz) |
| Output Voltage | 4.0 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance | 1.0 dB (1 kHz) |
| Stylus Shape | 2.2 x 0.12 mil MicroLine® |
| Cantilever | Aluminum tapered pipe |
| Static Compliance | 40 x 10-6 cm/dyne |
| Dynamic Compliance | 10 x 10-6 cm/dyne (100 Hz) |
| Mounting | Half-inch |
| Dimensions | 17.3 mm (0.7″) H x 17.0 mm (0.7″) W x 28.2 mm (1.1″) D |
| Accessories Included | Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set |
| Mounting Feature | Half-inch mount |
| Recommended Load Capacitance | 100-200 pF |
| Replacement Stylus | VMN40ML |
| Stylus Size | 0.12 x 2.2 mil |
| Type | VM Type |
| Weight | 8.0 g (0.3 oz) |
