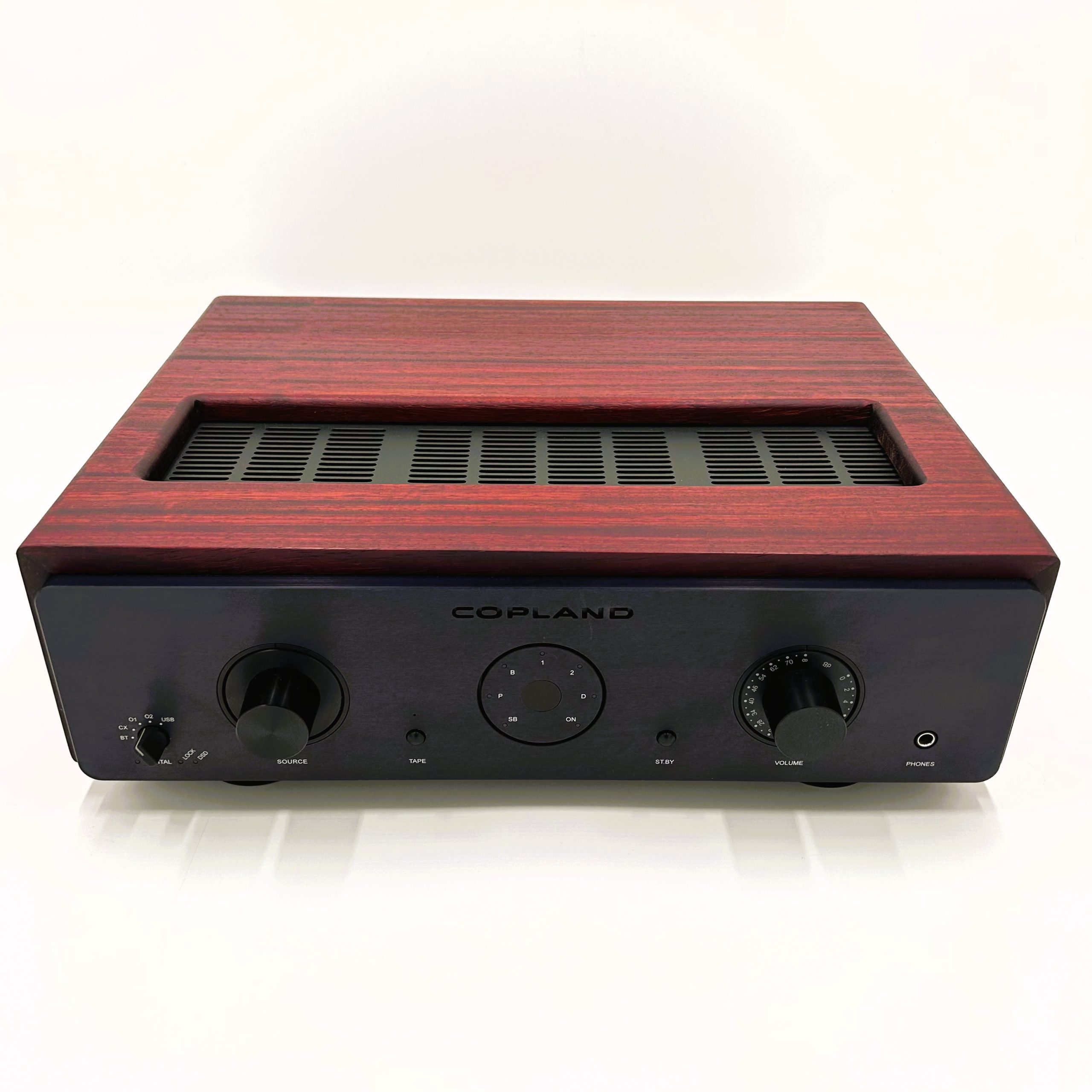

COPLAND CSA100

THIS UNIT IS A MODERN AUDIOPHILE GRADE, HYBRID INTEGRATED AMPLIFIER, UTILIZING ONE SINGLE 6922 VACUUM TUME ON THE PREAMP STAGE, WITH SOLID STATE MOSFET ON THE POWER AMP STAGE. THIS AMPLIFIER FEATURES A CUSTOM MADE AND DESIGNED IN HOUSE, SOLID PADAUK WOOD CASE! INCLUDES BALANCED INPUTS. THE SPEAKER OUTPUTS ARE REVERSE-PHASED SO YOU WILL NEED TO PLUG THE POSITIVE SPEAKER WIRE INTO THE NEGATIVE, AND THE NEGATIVE SPEAKER WIRE INTO THE POSITIVE.

UNIT HAS BEEN TESTED. FULLY FUNCTIONAL.

*TO SEE A REAR VIEW, PLEASE TYPE THE MAKE AND MODEL NUMBER INTO GOOGLE AND USE THE WORD “REAR” TO VIEW THE ENTIRE UNIT.

Power output: 100 watts per channel into 8Ω (stereo)

Frequency response: 10Hz to 150kHz

Total harmonic distortion: 0.06%

Input sensitivity: 2.6mV (MM), 250mV (line)

Signal to noise ratio: 90dB (line)

Speaker load impedance: 4Ω (minimum)

Digital inputs: coaxial, optical, USB, BT

Valve complement: 1 x 6922

Dimensions: 435 x 135 x 370mm

Weight: 14kg

Year: 2020
