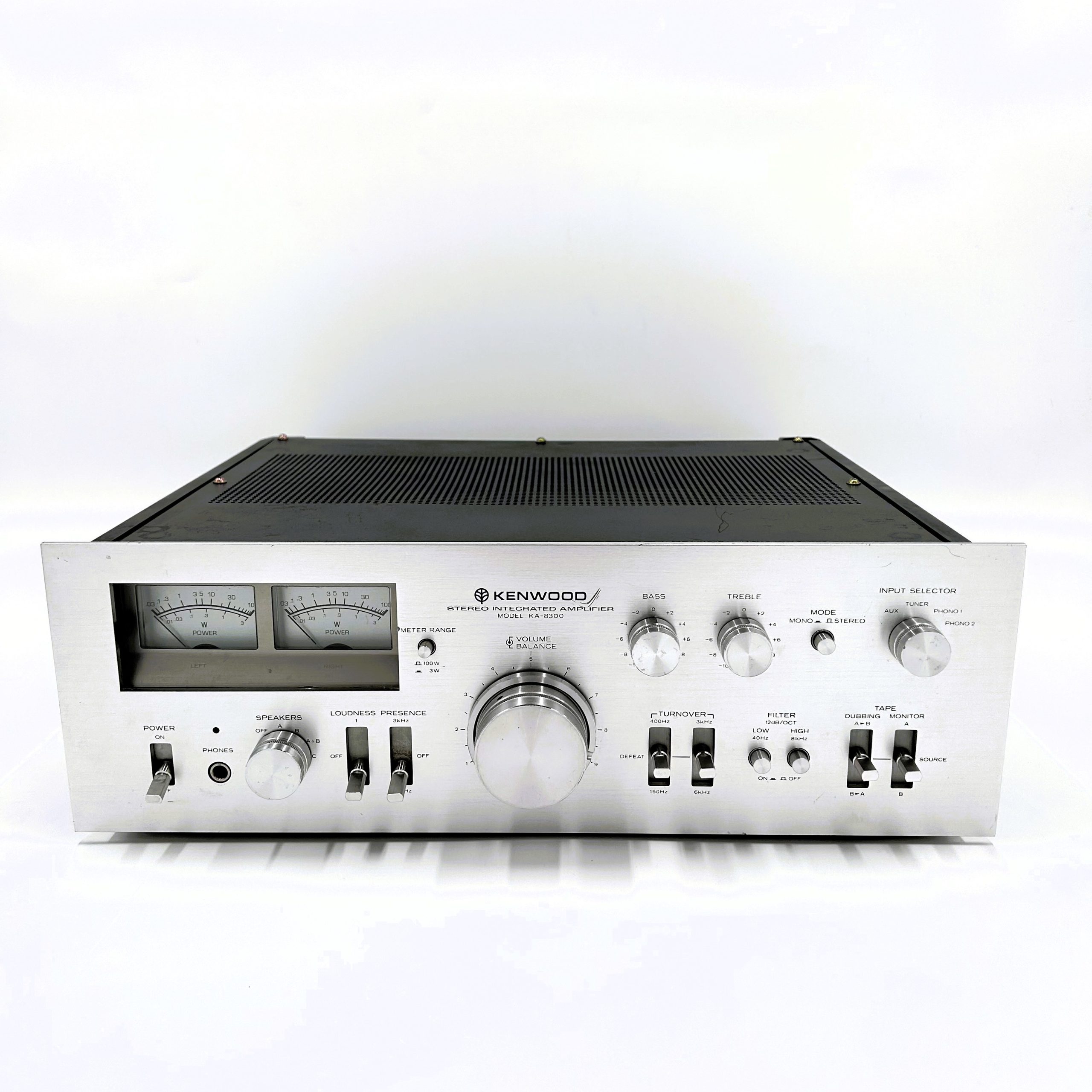

KENWOOD KA8300

UNIT IS NOT SERVICED BUT TESTED AND FULLY FUNCTIONAL

*TO SEE A REAR VIEW, PLEASE TYPE THE MAKE AND MODEL NUMBER INTO GOOGLE AND USE THE WORD “REAR” TO VIEW THE ENTIRE UNIT.



SPECIFICATIONS:

Power output: 80 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 40kHz

Total harmonic distortion: 0.1%

Damping factor: 50

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 72dB (MM), 90dB (line)

Output: 150mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Dimensions: 430 x 149 x 376mm

Weight: 16kg

Year: 1975
