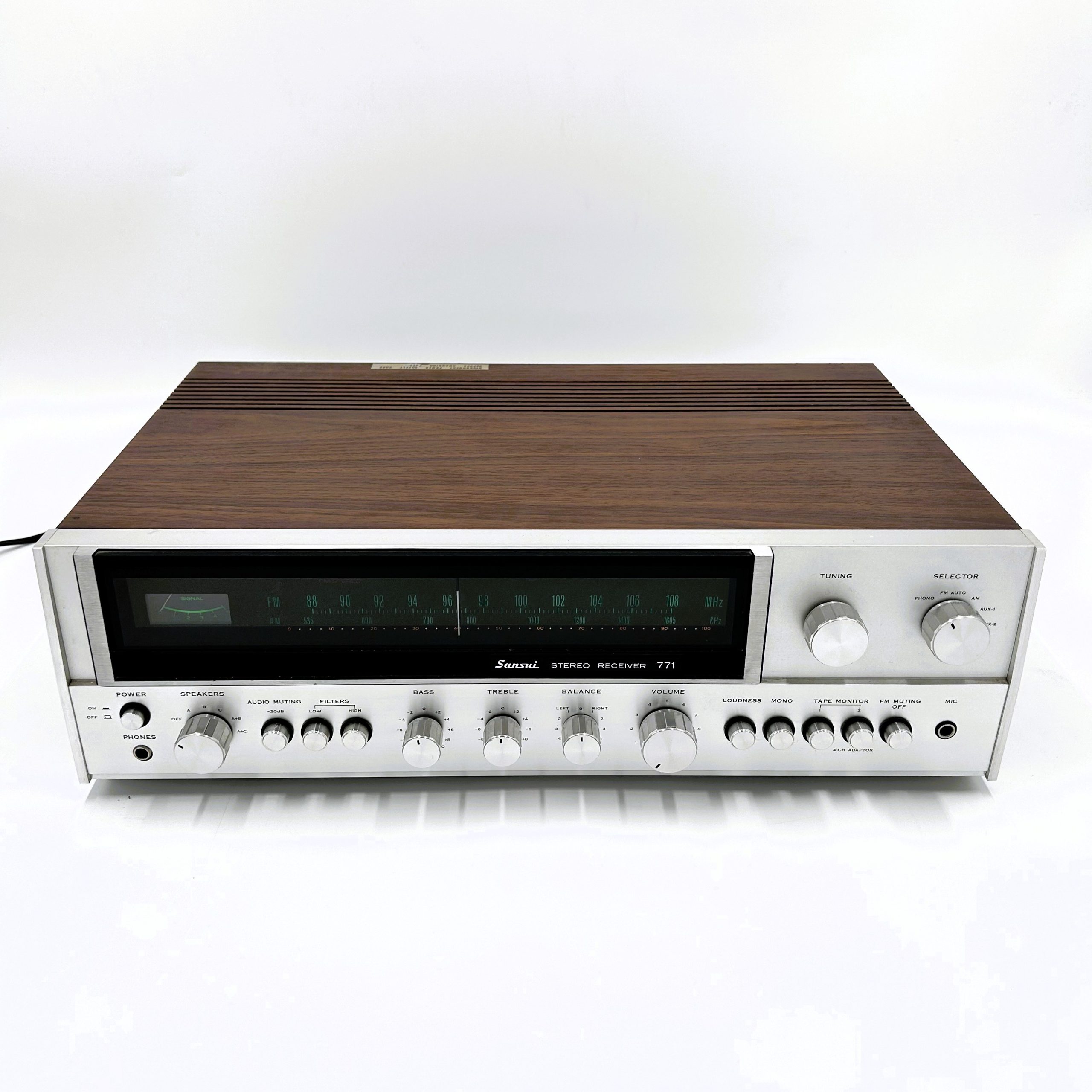

SANSUI 771

AWESOME VINTAGE SANSUI AMPLIFIER WITH SOME DRIVE! SERVICED WITH WARRANTY

“Thanks to its refined Circuit Board Module construction, the Sansui 771 outperforms many higher priced receivers in the field.

It offers a very superior power amplifier, an all-stage direct coupled OCL powerhouse delivering a continuous 40wpc to drive up to two pairs of speakers at a time.

The preamplifier section and control sections are equally outstanding, providing inputs and controls for two tape decks, two aux, a microphone circuit, a phono circuit and an FM multiplex circuit.”

SPECIFICATIONS:

Tuning range: FM, MW

Power output: 32 watts per channel into 8Ω (stereo)

Frequency response: 15Hz to 30kHz

Total harmonic distortion: 0.5%

Damping factor: 60

Input sensitivity: 2.5mV (mic), 2.5mV (MM), 100mV (DIN), 100mV (line)

Signal to noise ratio: 70dB (MM), 80dB (line)

Channel separation: 45dB (MM), 45dB (line)

Output: 100mV (line), 30mV (DIN)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 3 x FET, 3 x IC, 49 x transistors, 25 x diodes, 4 x zener diodes

Dimensions: 480 x 135 x 300mm

Weight: 12kg

Year: 1973
