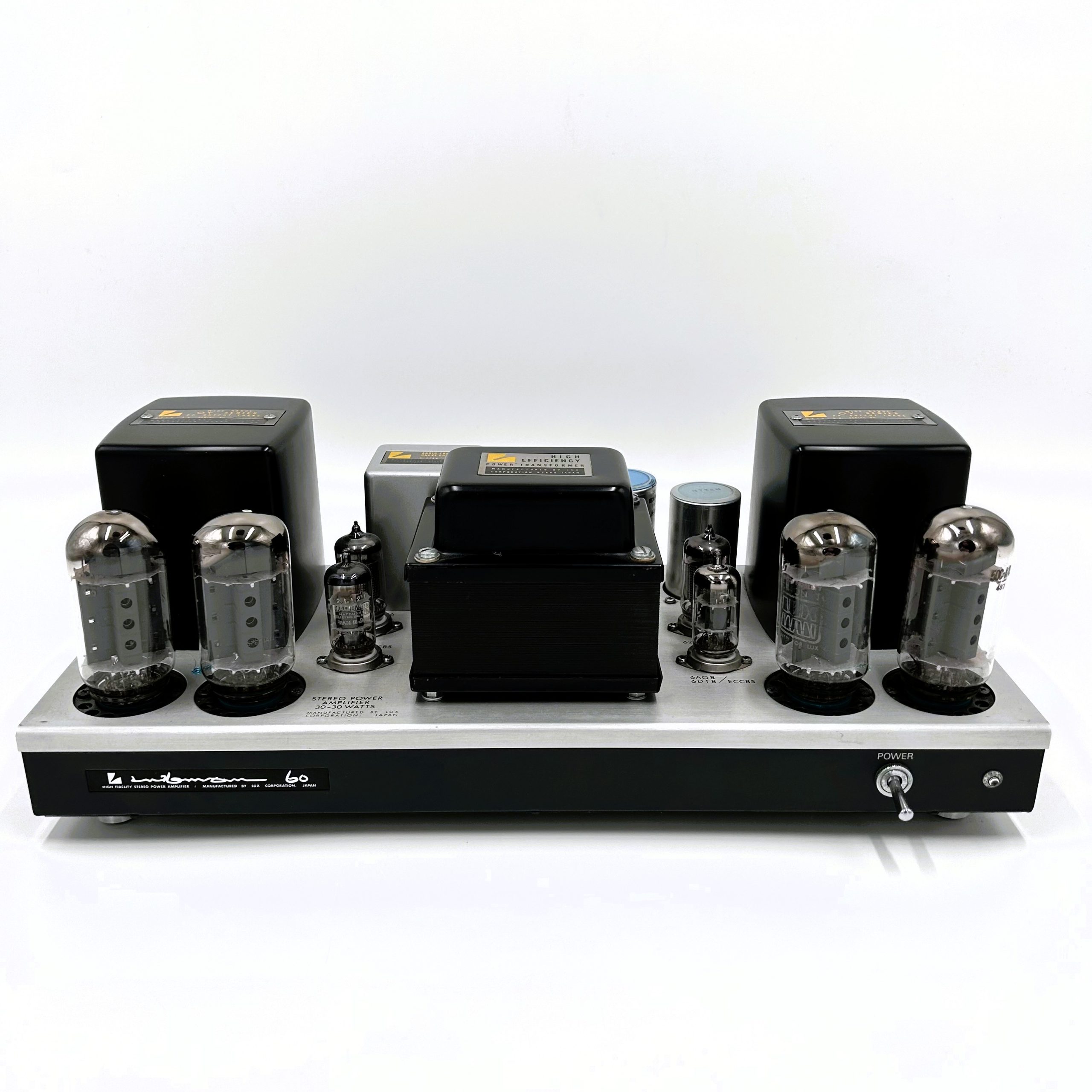

LUXMAN MQ60

EXCELLENT CONDITION, TESTED AND FULLY FUNCTIONAL
IMPORTED FROM JAPAN BY A FRIEND OF THE STORE

*TO SEE A REAR VIEW, PLEASE TYPE MAKE AND MODEL NUMBER INTO GOOGLE AND USE THE WORD “REAR” TO VIEW THE ENTIRE UNIT.

SPECIFICATIONS:

• Manufacturer: Luxman
• Model: MQ-60
• Type: Tube power amplifier
• Years of manufacture: 1969 – 1978
• Made in: Japan
• Power consumption:
• Dimensions: 410 x 160 x 205 mm (WxHxD).
• Weight: 13,8 kg
• Original price approx:
  • Japan, 1969: 62’000 Yen, 1’000 DM.
  • Japan, 1974: 79’000 Yen, 1’200 DM

Connections

• Number of inputs:
  • Line In: 70 mV
• Number of outputs:
  • Headphones:
  • 1 pair of speakers

Technical Data

• Continuous power (at distortion factor)
  • 8 Ohm: 2x 30 W (1 kHz)
  • 4 Ohm:
• Dynamic power
  • 8 Ohm:
  • 4 Ohm:
• Total harmonic distortion:
  • 1 watt: 0.1 % (1 kHz)
  • 10 Watt: 0,3 % (1 kHz)
• Attenuation factor: 15
• Frequency response: 15 Hz – 60 kHz (-1dB)
• Signal-to-noise ratio: 90 dB

Special Features

• Tube equipment:
  • 4x 50CA10
  • 2x 6DT8
  • 2x 6267
